butt-welding/carbon steel pipe fittings steel reducer

Unit Price:

USD 0.1200 - 230.0000 / Ton

Payment Type:

L/C,T/T

Incoterm:

FOB

Min. Order:

1 Ton

Delivery Time:

25 Days

Contact Now

Basic Info

Model No.: DN15-1200

Material: Carbon Steel

Connection: Welding

Carton Steel Reducer: Asme B 16.5 Reducer

Additional Info

Packaging: pallet ,wooden case

Productivity: 100 tons per week

Brand: Ji Meng Group

Transportation: Ocean,Land

Place of Origin: Meng Cun County

Supply Ability: 100 tons per week

Certificate: ISO ,KS ,CE

Product Description

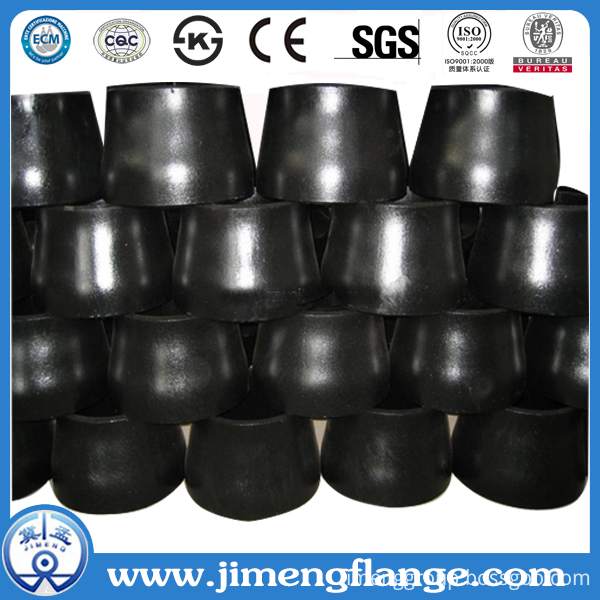

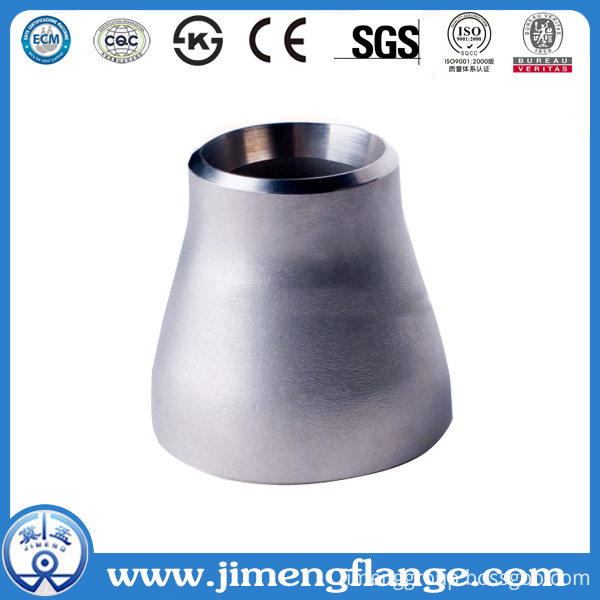

Butt-weld Pipe Reducer Production Range – Concentric & Eccentric
Outside Diameter: SeamlessPipe Reducer ( 1/2″~24″), ERW / Welded /Fabricated Pipe Reducer (1/2″~48″)
Type: Concentric Reducer , Eccentric Reducer

Main Production Name	45 / 90 / 180 , Long / Short Radius Elbows, Equal / Reducing Crosses, Concentric / Eccentric Reducers, Caps, Stub Ends
Size Range	From ½" up to 106"
Schedule	SCH STD, XS, XXS, SCH 10 ~ SCH 160
Main Material Code:
1 CARBON STEEL	ASTM A234 WPB, WPC; ASTM A420 WPL9, WPL3, WPL6, WPHY-42
1 CARBON STEEL	WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70,
2 ALLOY STEEL	ASTM A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91
3 SPECIAL ALLOY	Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800,
	Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500
	WPS 31254 S32750, UNS S32760
4 STAINLESS STEEL	ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254
5 Duplex& super duplex stainless steel	ASTM A 815 UNS S31803, UNS S32750, UNS S32760
STANDARDS	ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
Certification:	ISO9001:2000 , API , BV , SGS, LOIYD
Applications range:	Petroleum, chemical, power, gas, metallurgy, shipbuilding.construction,water and nuclear power etc.
Quality	high lever
The third party inspection:	BV,SGS,LOIYD,TUV,and other party alloyed by clients.
Delivery Time:	At the earliest ,within the period required by customer.
Remark:	Also can supply IBR fittings and Specialized NACE & HIC Fittings.

WallThickness: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS

ValueAdded Services: HotDipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting,Threading, Soldering

ProductionGrades: StainlessSteel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel,Cupronickel, Copper

ManufacturingStandards

ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTMA403– ASME SA403 – Standard Specification for Wrought Austenitic Stainless SteelPiping Fittings

ASMEB16.9– Factory-Made Wrought Fittings Butt-welding

ASMEB16.25– Butt-welding Ends ASME B16.28 – `Wrought Steel Short Radius Elbows and Butt-weldingReturns

MSSSP-43– `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, CorrosionResistant Applications

Pipe ReducerMaterial Grades

StainlessSteel Reducer;ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

CarbonSteel Reducer:ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

LowTemperature Carbon Steel Reducer: ASTM A420 WPL3, A420 WPL6

Alloy Steel Reducer : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer : ASTM A815, ASME SA 815 UNS NO S31803, S32205.

NickelAlloy Reducer:ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400(MONEL 400 ), UNS8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
